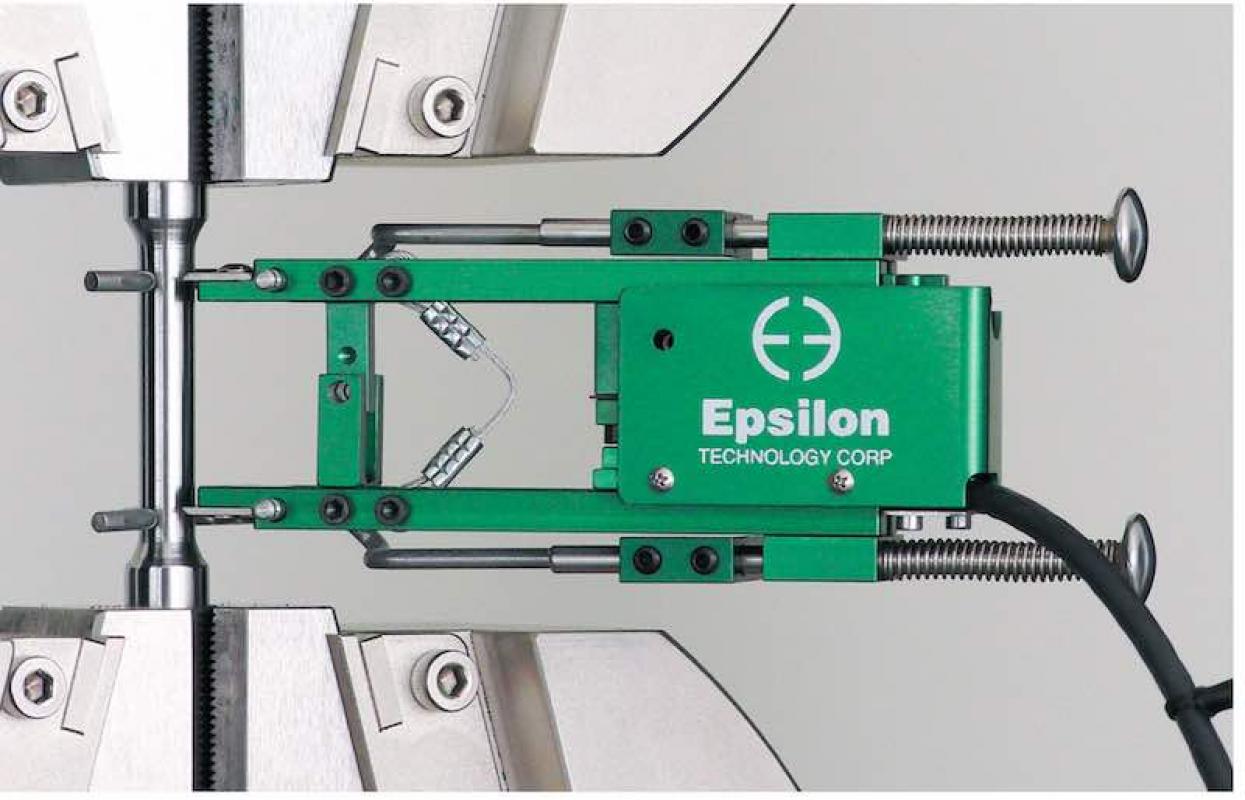

EPSILON 3542 伸長計
EPSILON 3542 伸長計
- 廠牌 : EPSILON (USA)
- 型號 : 3542
- 簡介 :
- . 通用伸長計，用於軸向拉伸，壓縮和循環測試。
- . 標距長度為10到80毫米（0.5到2英寸)。
- . 滿量程測量範圍為5％到100％應變。
EPSILON 3542 伸長計
Excitation:5 to 10 VDC recommended, 12 VDC or VAC max.
Output:2 to 4 mV/V, nominal, depending on model
Linearity:≤0.15% of full scale measuring range
Temperature Range:Standard (-ST) is -40 °C to +100 °C (-40 °F to 210 °F)
Cable:Integral, ultra-flexible cable, 2.5 m (8 ft) standard
Standard Quick Attach Kit:Fits round samples up to 25 mm (1.0 inch) diameter and flats up to 12 mm thick by 31 mm wide (0.5 inch by 1.25 inch); attach to larger specimens using rubber bands or springs (included)
Operating Force:30 g typical
